ATlas
Atlas is a six square kilometer land package located in Eureka County, Nevada, approximately 30 kilometers southwest of the town of Carlin, NV. The property exhibits classic Carlin-Type alteration and gold mineralization within outcropping Pennsylvanian to Permian age carbonate to siliciclastic host rocks. The primary target at Atlas is a bulk tonnage, oxide, Carlin-Type gold system, which is analogous to the nearby Dark Star gold deposit (part of the greater Railroad Mining District), which is currently owned by Orla Mining and advancing towards mine development. The 100% owned Project is comprised of a total of eight square kilometers of highly prospective exploration ground that will benefit from the Ridgeline teams’ systematic approach to discovery

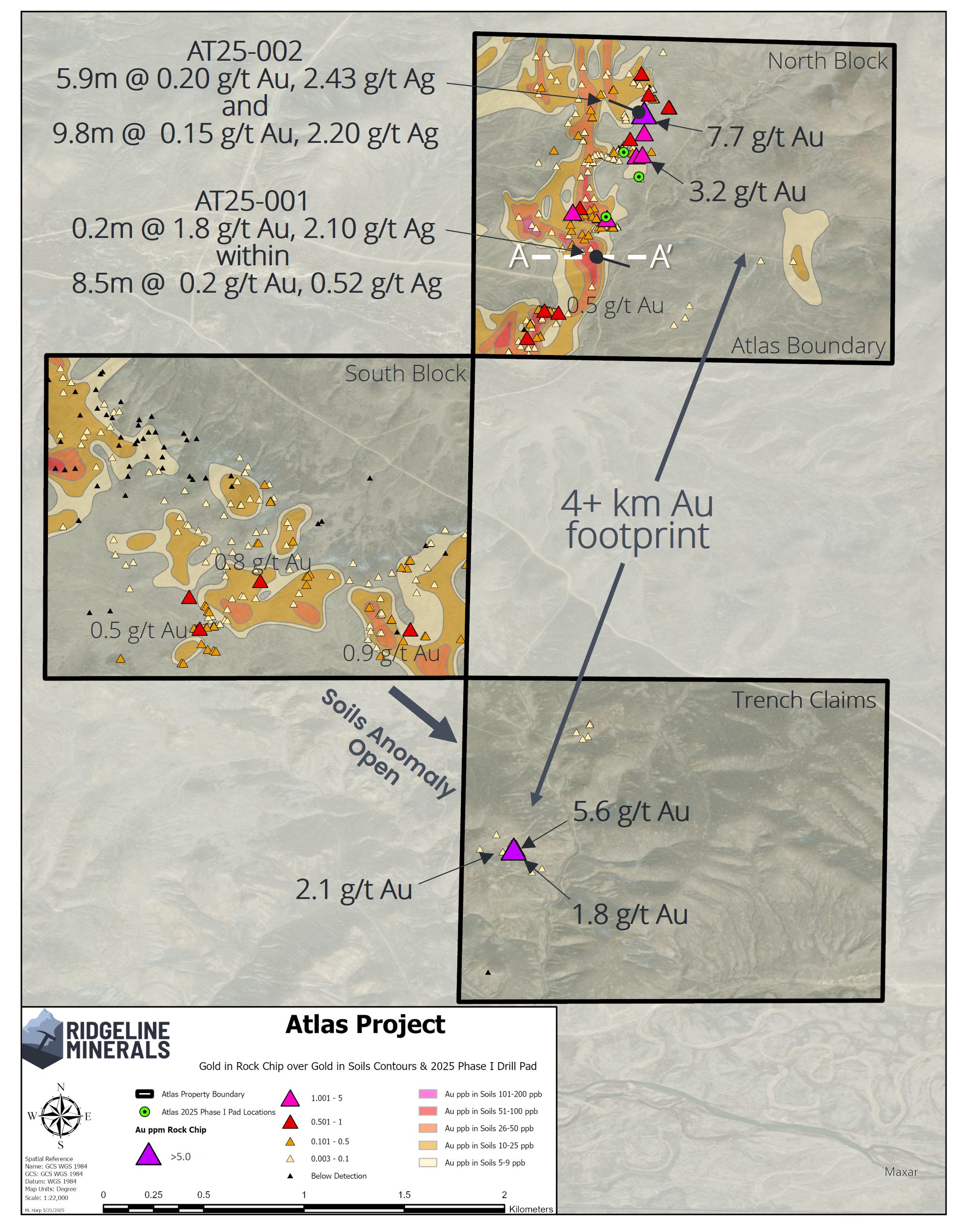

ROCK CHIP HIGHLIGHTS
- Atlas North: 7.7 g/t Au, 3.2 g/t Au, 2.9 g/t Au
- Atlas South: 0.9 g/t Au, 0.8 g/t Au, 0.5 g/t Au

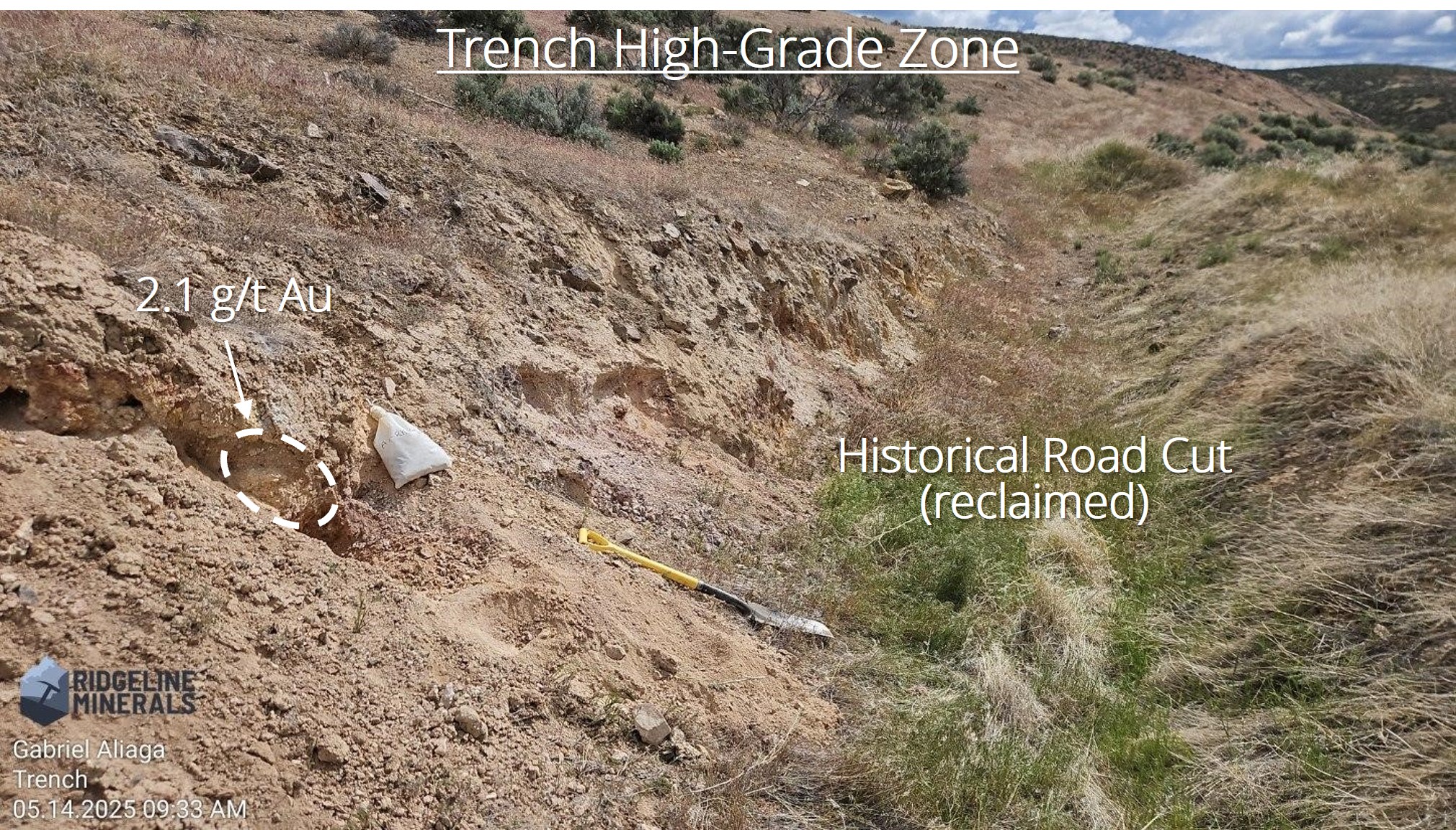

- Trench Claims: 5.6 g/t Au, 2.1 g/t Au, 1.8 g/t Au
- A total of 380 historical rock chips across the property have been collected ranging from 0.002-7.70 g/t Au (avg. 0.17 g/t Au)
- 139 of the rock chip samples returned grades of 0.10 g/t Au or higher
- 35 rock chip samples returned grades averaging 0.40 g/t Au or higher •
- Ridgeline collected 21 rock chip samples during initial field reconnaissance ranging from 0.007-2.1 g/t Au (avg. 0.33 g/t Au)
For a table of surface rock chip assays click HERE
QUICK FACTS
- Carlin-Type Oxide Gold-Silver
- Open-Pit (Oxide)
- Newmont, Sante Fe Pacific Mining
- Small-scale artisinal mining from shallow adits
- No known production records exist
- No known resource
- Historical rock chips and soils data acquired from a third party exist for portions of the claim block
- Publicly domain gravity and magnetics survey data available in the project area
- Package of Pennsylvanian to Permian age silty limestones, conglomerates and calcareous siliciclastics outcrop across the project area
- Penn/Perm rocks interpreted as the same age and depositional setting to Orla Minings Dark Star deposit on the South Carlin Trend
- Thin skin of pre-mineral andesites overlay portions of the Penn/Perm carbonates in the NE portion of the claim block
- Overlap sequence siliciclastics overlay portions of the Penn/Perm carbonates in the South claim block
- Detailed historical mapping in the area completed by the USGS and by previous operators
- Drilling was completed by historical operators in the 1990’s on portions of the project with hole location and data unknown
